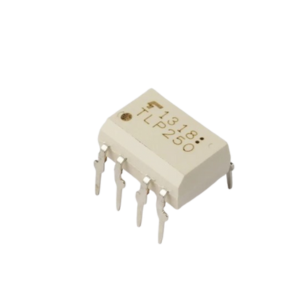

TLP250: High-Speed Gate Drive Optocoupler
TLP250 TLP250 is a high-speed optical coupler that is designed to drive high-power MOSFETs and IGBTs. It provides the electrical isolation needed for solid gate control. It is comprised of an GaAlAs infrared LED, which is optically linked to the high-speed photodetector. With an average outputting current at 1.5 A and an average time delay in propagation that is 1.5 milliseconds The TLP250 is ideal for inverters, motor drives and the power-switching applications. It operates in the 10V-30V supply range, and comes with a 5 kV of isolation voltage which ensures safety in high voltage environments.
Key Features & Specifications:
- Type: High-speed gate drive optocoupler
- Function Isolates and drives MOSFETs to power as well as IGBTs
- Components: Infrared LED with a high-speed photodetector
- Propagation Delay: Typically 1.5 us
- Output Current: Up to 1.5 A
- Supply Voltage Range: 10V to 30V
- Isolation Voltage: 5 kV
- High-Speed Shifting is suitable for high-speed power electronic applications
- low power consumption Effective operation with low energy loss
- Small Package Available with eight-pin DIIP as well as SO8 surface-mount packaging
- Higher Reliability designed to be used in automotive and industrial environments
- Operating Temperature Band: -40degC to 100degC which makes it ideal for extreme environments
